Flat Profile • ₹ 76/Kg

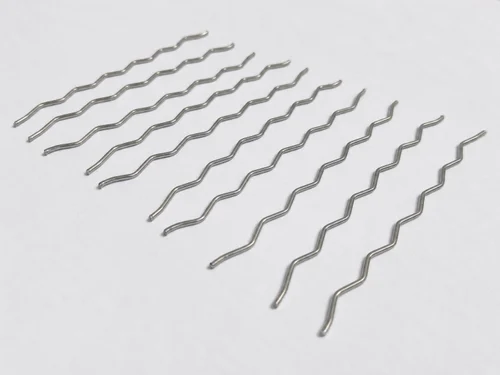

Earth Fiber Flat Crimped Steel Fibers are designed with a flattened profile and sinusoidal waves to maximize the bonding surface area per kilogram. Engineered to meet or exceed ASTM A820 performance requirements, delivering tighter aggregate interlock and increased load bearing capacity.
Fill in your project requirements below. Our technical sales engineers in Sonipat will contact you within 2 hours with price and mix design dosage recommendations.
Extracted from the official Earth Fibrex Infra Product Technical Data Sheet (TDS). Each consignment complies with ASTM and EN standards and includes an authentic Manufacturer Test Certificate (MTC).
| Technical Property | Specified Parameter / Value |
|---|---|
| Fiber Shape | Flat Crimped / Corrugated Ribbon |
| Length (L) | 50 mm - 55 mm |
| Aspect Ratio (L/D) | 50 |
| Tensile Strength | > 850 – 1100 MPa |
| Strain at Failure | < 4% |
| Camber of Fiber | Max 5% of Length |
| Fibers per Kg | ~3,137 pieces / kg |
| Standard Compliance | ASTM A820 Type I cold drawn wire |
| Packaging | 20 kg / 25 kg bags, 1 Ton Palletized |
| Application / Structural Type | Recommended Dosage |
|---|---|
| Heavy Industrial Flooring | 20 – 35 kg/m³ |
| Port Container Yards | 25 – 40 kg/m³ |
| Road Overlays | 15 – 25 kg/m³ |
* Actual dosage should be determined based on structural design calculations, subgrade conditions, and heavy axle point loads. Contact our concrete engineering team for free slab optimization.
Add directly into planetary pan mixer or transit mixer drum. Mix for 4 minutes at high speed.
Store in dry, covered warehouse conditions away from direct rain and ground moisture. Multi-wall craft bags and palletized shrink-wrapped big bags ensure pristine shelf life.
Designed for maximum matrix anchorage in civil, industrial, and infrastructure concrete installations.
