Corrugated Bond • ₹ 75/Kg

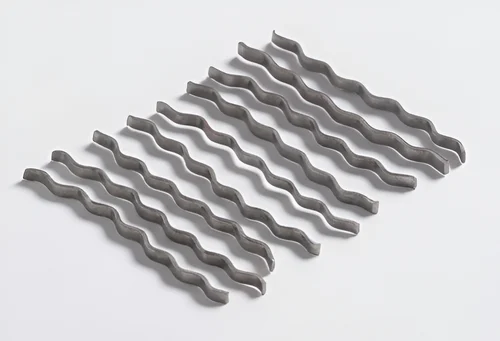

Earth Fiber 50mm Round Crimped Steel Fiber features a continuous sinusoidal wave profile along its entire length. As tensile stress develops across micro-cracks, each crimp wave provides continuous mechanical interlock, guaranteeing sustained post-crack load carrying capacity. Excellent pumpability and clump-free dispersion.
Fill in your project requirements below. Our technical sales engineers in Sonipat will contact you within 2 hours with price and mix design dosage recommendations.
Extracted from the official Earth Fibrex Infra Product Technical Data Sheet (TDS). Each consignment complies with ASTM and EN standards and includes an authentic Manufacturer Test Certificate (MTC).
| Technical Property | Specified Parameter / Value |
|---|---|
| Fiber Shape | Continuous Sinusoidal Wave |
| Diameter (D) | 1.00 mm (options: 0.75mm) |
| Length (L) | 50 mm |
| Aspect Ratio (L/D) | 50 |
| Tensile Strength | > 1250 MPa |
| Strain at Failure | < 4% |
| Camber of Fiber | Max 5% of Length |
| Fibers per Kg | 3,137 pieces / kg |
| Compliance | ASTM A820 Type I, EN 14889-1 |
| Packaging | 20 kg / 25 kg bags |
| Application / Structural Type | Recommended Dosage |
|---|---|
| Ground Supported Slabs | 20 – 30 kg/m³ |
| External Roads & Pavements | 20 – 35 kg/m³ |
| Canal Linings | 15 – 25 kg/m³ |
* Actual dosage should be determined based on structural design calculations, subgrade conditions, and heavy axle point loads. Contact our concrete engineering team for free slab optimization.
Add directly into concrete mixer during batching. Disperses easily with zero clumping.
Store in dry, covered warehouse conditions away from direct rain and ground moisture. Multi-wall craft bags and palletized shrink-wrapped big bags ensure pristine shelf life.
Designed for maximum matrix anchorage in civil, industrial, and infrastructure concrete installations.
Explore complementary fiber reinforcements, microsilica additives, and dry shake floor hardeners.
High-tensile cold-drawn hooked steel fibers engineered to replace wire mesh and reinforce industrial concrete slabs, pavements, and shotcrete.
Long-span 60mm hooked end steel fiber designed for maximum crack-bridging capability and heavy dynamic floor loads.
Heavy-duty 50mm hooked wire fiber providing reliable pullout resistance and toughness for industrial floors and precast elements.
